Wordprocessing Tables

Floating Tables

A floating table is a table which is not part of the main text flow in the document but is instead absolutely positioned with a specific size and position relative to non-frame content in the document. A floating table is specified with the <w:tblpPr> element within the <w:tblPr> element.

Note: Positioning of the table is relative to its top-left corner. Anchors (e.g., margin, page, or text) are specified in attributes (tblpX and tblpY), from which measurements (also specified in attributes) for placement of the table are specified. Distance from surrounding text can also be specified in other attributes.

<w:tblPr>
<w:tblpPr w:leftFromText="144" w:rightFromText="144" w:topFromText="144" w:bottomFromText="144" w:vertAnchor="page" w:horzAnchor="page" w:tblpX="4320" w:tblpY="4320"/>
</w:tblPr>
Reference: ECMA-376, 3rd Edition (June, 2011), Fundamentals and Markup Language Reference § 17.4.58.
Word 2007 Example:

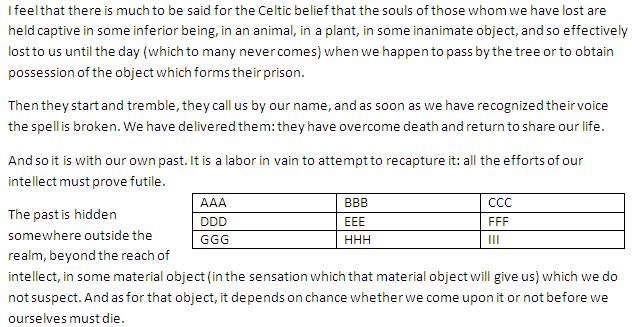

Floating Table

Attributes:

The attributes are:

AttributeDescription
horzAnchor Specifies the horizontal anchor or the base object from which the horizontal positioning in the tblpX or tblpXSpec attribute should be determined. Possible values are:
  • margin - relative to the vertical edge of the text margin before any text runs (left edge for left-to-right paragraphs)
  • page - relative to the vertical edge of the page before any text runs (left edge for left-to-right paragraphs)
  • text - relative to the vertical edge of the text margin for the column in which the anchor paragraph is located

If omitted, the value is assumed to be page.

vertAnchor Specifies the vertical anchor or the base object from which the vertical positioning in the tblpY attribute should be determined. Possible values are:
  • margin - relative to the horizontal edge of the text margin before any text runs (top edge for top-to-bottom paragraphs)
  • page - relative to the horizontal edge of the page before any text runs (top edge for top-to-bottom paragraphs)
  • text - relative to the horizontal edge of the text margin for the column in which the anchor paragraph is located

If omitted, the value is assumed to be page.

tblpX Specifies an absolute horizontal position for the table, relative to the horzAnchor anchor. The value is in twentieths of a point. Note that the value can be negative, in which case the table is positioned before the anchor object in the direction of horizontal text flow. If tblpXSpec is also specified, then the tblpX attribute is ignored. If the attribute is omitted, the value is assumed to be zero.
tblpXSpec Specifies a relative horizontal position for the table, relative to the horzAnchor attribute. This will supersede the tblpX attribute. Possible values are:
  • center - the table should be horizontally centered with respect to the anchor
  • inside - the table should be inside of the anchor
  • left - the table should be left aligned with respect to the anchor
  • outside - the table should be outside of the anchor
  • right - the table should be right aligned with respect to the anchor
tblpY Specifies an absolute vertical position for the table, relative to the vertAnchor anchor. The value is in twentieths of a point. Note that the value can be negative, in which case the table is positioned before the anchor object in the direction of vertical text flow. If tblpYSpec is also specified, then the tblpX attribute is ignored. If the attribute is omitted, the value is assumed to be zero.
tblpYSpec Specifies a relative vertical position for the table, relative to the vertAnchor attribute. This will supersede the tblpY attribute. Possible values are:
  • center - the table should be vertically centered with respect to the anchor
  • inside - the table should be vertically aligned to the edge of the anchor and inside the anchor
  • bottom - the table should be vertically aligned to the bottom edge of the anchor
  • outside - the table should be vertically aligned to the edge of the anchor and outside the anchor
  • inline - the table should be vertically aligned in line with the surrounding text (so as to not allow any text wrapping around it)
  • top - the table should be vertically aligned to the top edge of the anchor
bottomFromText Specifies the minimun distance to be maintained between the table and the top of text in the paragraph below the table. The value is in twentieths of a point. If omitted, the value is assumed to be zero.
topFromText Specifies the minimun distance to be maintained between the table and the bottom edge of text in the paragraph above the table. The value is in twentieths of a point. If omitted, the value is assumed to be zero.
leftFromText Specifies the minimun distance to be maintained between the table and the edge of text in the paragraph to the left of the table. The value is in twentieths of a point. If omitted, the value is assumed to be zero.
rightFromText Specifies the minimun distance to be maintained between the table and the edge of text in the paragraph to the right of the table. The value is in twentieths of a point. If omitted, the value is assumed to be zero.

Since floating tables are outside of the normal flow of text and can be postiioned absolutely, the potential exists for multiple floating tables to overlap. However, overlapping can be prevented with the <w:tblOverlap> element within the <w:tblPr> element. This element specifies whether the table allows other floating tables to overlap it.

<w:tblOverlap> has just one attribute, val, with the following possible values:

Reference: ECMA-376, 3rd Edition (June, 2011), Fundamentals and Markup Language Reference § 17.4.57.

Overlapping allowed

<w:tblPr>
<w:tblpPr w:leftFromText="144" w:rightFromText="144" w:topFromText="144" w:bottomFromText="144" w:vertAnchor="page" w:horzAnchor="page" w:tblpX="4120" w:tblpY="4120"/>
. . . JJJ . . . KKK . . . etc.
</w:tblPr>

<w:tblPr>
<w:tblpPr w:leftFromText="144" w:rightFromText="144" w:topFromText="144" w:bottomFromText="144" w:vertAnchor="page" w:horzAnchor="page" w:tblpX="4320" w:tblpY="4320"/>
. . . AAA . . . BBB . . . etc.
</w:tblPr>
Word 2007 Example:

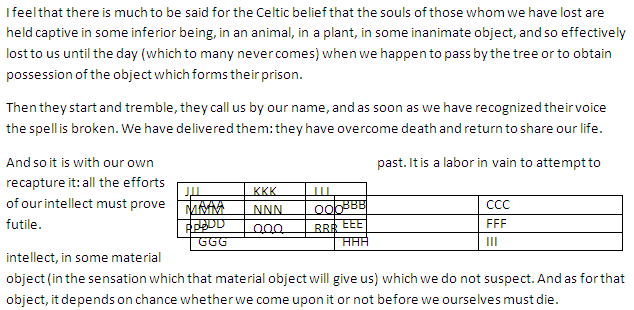

Overlapping Tables

Overlapping not allowed

<w:tblPr>
<w:tblpPr w:leftFromText="144" w:rightFromText="144" w:topFromText="144" w:bottomFromText="144" w:vertAnchor="page" w:horzAnchor="page" w:tblpX="4120" w:tblpY="4120"/>
<w:tblOverlap w:val="never"/>
. . . JJJ . . . KKK . . . etc.
</w:tblPr>

<w:tblPr>
<w:tblpPr w:leftFromText="144" w:rightFromText="144" w:topFromText="144" w:bottomFromText="144" w:vertAnchor="page" w:horzAnchor="page" w:tblpX="4320" w:tblpY="4320"/>
<w:tblOverlap w:val="never"/>
. . . AAA . . . BBB . . . etc.
</w:tblPr>

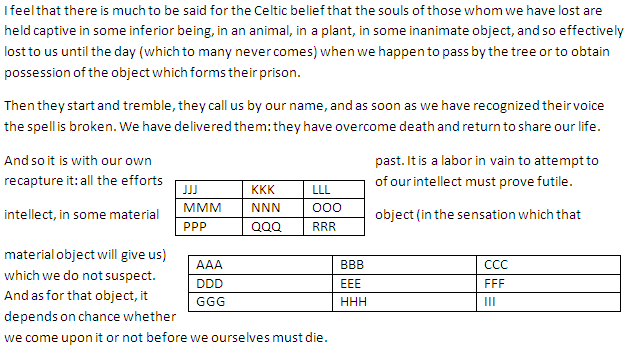

Word 2007 Example:
Overlapping Tables

Related CSS property:

Aspects of the OOXML floating table can be replicated with CSS, but with severe limitations. Tables can be positioned using the position property, but then the table is removed from the flow of content and overlapping may occur. A table can be made to float left or right relative to its containing block using the float property, but then specific or absolute positioning is not available.
